Diagnostics¶

shiftkit.diagnostics provides visualisation tools for inspecting latent spaces, classification performance, and training dynamics.

plot_latent_space¶

Encode samples from source and target loaders, project to 2-D, and plot two panels:

Left — coloured by domain (source = blue, target = orange)
Right — coloured by class label (10 colours)

Three projection methods are available via the projection parameter: t-SNE, Isomap, and UMAP.

from shiftkit.diagnostics import plot_latent_space

# t-SNE (default)
fig = plot_latent_space(
    model=model,
    source_loader=test_src,
    target_loader=test_tgt,
    max_samples=2000,
    projection="tsne",
    title="CNN + MMD",
    save_path="outputs/latent_space.png",
    show=False,
)

# Isomap
fig = plot_latent_space(model, test_src, test_tgt,
                        projection="isomap", n_neighbors=10)

# UMAP
fig = plot_latent_space(model, test_src, test_tgt,
                        projection="umap", n_neighbors=15, min_dist=0.1)

Parameters¶

Parameter	Type	Default	Description
`model`	`nn.Module`	—	Trained model with `.encode()` method
`source_loader`	`DataLoader`	—	Source domain DataLoader
`target_loader`	`DataLoader`	—	Target domain DataLoader
`max_samples`	`int`	`2000`	Max samples per domain
`projection`	`str`	`"tsne"`	Projection method: `"tsne"`, `"isomap"`, or `"umap"`
`perplexity`	`float`	`30.0`	t-SNE perplexity (t-SNE only)
`n_iter`	`int`	`1000`	t-SNE number of iterations (t-SNE only)
`n_neighbors`	`int`	`15`	Neighbourhood size (Isomap and UMAP)
`min_dist`	`float`	`0.1`	Minimum distance between embedded points (UMAP only)
`title`	`str`	`"Latent Space"`	Figure suptitle
`save_path`	`str \\| None`	`None`	If set, save figure to this path
`class_names`	`list \\| None`	`None`	Class label strings; uses integers if `None`
`show`	`bool`	`True`	Whether to call `plt.show()`

Returns: matplotlib.figure.Figure

Interpreting the domain panel

A well-adapted model will show blue and orange points interleaved in the domain panel — the encoder has learned to ignore domain-specific variation. A non-adapted model will show two clearly separated clusters.

compare_latent_spaces¶

Compare latent spaces of multiple models in a single figure. Each model gets one row with the same two panels (by domain, by class). Rows appear in dict insertion order.

from shiftkit.diagnostics import compare_latent_spaces

fig = compare_latent_spaces(
    models={
        "Source Only": model_baseline,
        "MMD":         model_mmd,
        "DANN":        model_dann,
    },
    source_loader=test_src,
    target_loader=test_tgt,
    max_samples=2000,
    projection="tsne",          # or "isomap" / "umap"
    save_path="outputs/latent_space_comparison.png",
    show=False,
)

Output:

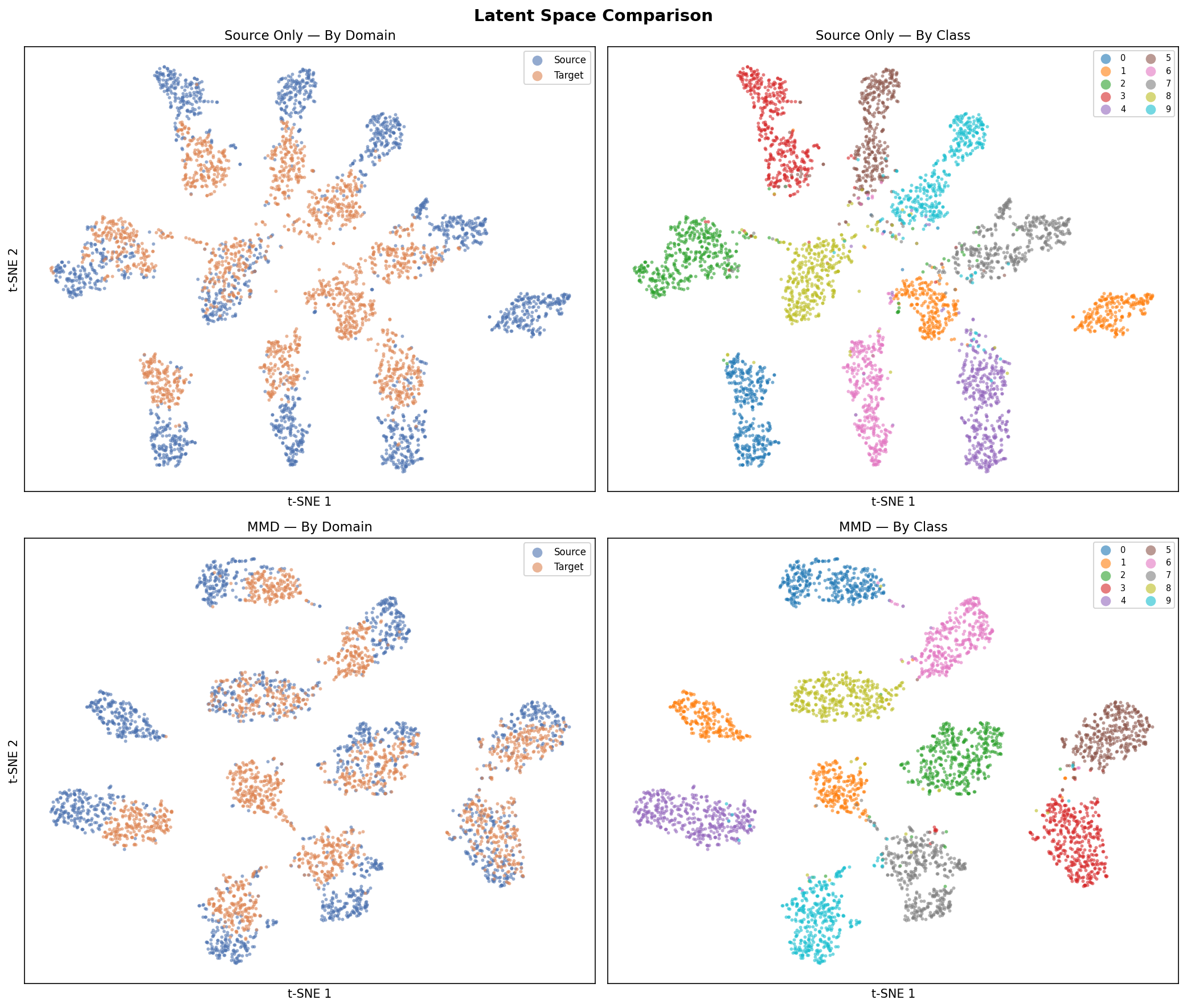

Latent Space Comparison Top row: Source-Only baseline. Bottom row: MMD-adapted model. Left column: by domain, right column: by class label.

Parameters¶

Parameter	Type	Default	Description
`models`	`dict[str, nn.Module]`	—	`{label: model}` mapping — one row per entry
`source_loader`	`DataLoader`	—	Source domain DataLoader
`target_loader`	`DataLoader`	—	Target domain DataLoader
`max_samples`	`int`	`2000`	Max samples per domain per model
`projection`	`str`	`"tsne"`	Projection method: `"tsne"`, `"isomap"`, or `"umap"`
`perplexity`	`float`	`30.0`	t-SNE perplexity (t-SNE only)
`n_iter`	`int`	`1000`	t-SNE iterations (t-SNE only)
`n_neighbors`	`int`	`15`	Neighbourhood size (Isomap and UMAP)
`min_dist`	`float`	`0.1`	Minimum distance between points (UMAP only)
`save_path`	`str \\| None`	`None`	If set, save figure to this path
`class_names`	`list \\| None`	`None`	Class label strings; uses integers if `None`
`show`	`bool`	`True`	Whether to call `plt.show()`

Returns: matplotlib.figure.Figure

Projection methods¶

t-SNE¶

t-Distributed Stochastic Neighbour Embedding converts high-dimensional similarities into a probability distribution and minimises the KL divergence between this distribution and one over the 2-D embedding. It excels at revealing tight clusters but does not preserve global structure, and distances between clusters are not directly interpretable.

Key hyperparameter: perplexity (5–50). Higher values consider larger neighbourhoods and produce coarser cluster structure.

Reference: van der Maaten, L., & Hinton, G. (2008). Visualizing Data using t-SNE. Journal of Machine Learning Research, 9, 2579–2605. [PDF]

Isomap¶

Isometric Mapping extends classical MDS by replacing Euclidean distances with shortest-path (geodesic) distances on the data manifold, estimated from a k-nearest-neighbour graph. Unlike t-SNE, Isomap is deterministic and better preserves global geometry, making relative distances between clusters more meaningful.

Key hyperparameter: n_neighbors — the neighbourhood size for the graph. Smaller values capture fine local structure; larger values smooth the manifold estimate.

Reference: Tenenbaum, J. B., de Silva, V., & Langford, J. C. (2000). A Global Geometric Framework for Nonlinear Dimensionality Reduction. Science, 290(5500), 2319–2323. [PDF]

UMAP¶

Uniform Manifold Approximation and Projection constructs a fuzzy topological representation of the data and optimises a low-dimensional embedding to have a similar topological structure. It is significantly faster than t-SNE on large datasets and better preserves both local and global structure.

Key hyperparameters:

n_neighbors — controls the balance between local and global structure. Smaller values focus on local neighbourhood; larger values give a more global view.
min_dist — minimum distance between embedded points. Smaller values pack clusters more tightly; larger values spread them out.

UMAP requires an optional dependency

pip install umap-learn

Reference: McInnes, L., Healy, J., & Melville, J. (2018). UMAP: Uniform Manifold Approximation and Projection for Dimension Reduction. arXiv:1802.03426. [PDF]

plot_training_history¶

Plot CE loss and accuracy curves from one or more training histories on the same axes.

Left panel — cross-entropy loss per model
Right panel — source accuracy (solid) and target accuracy (dashed) per model

from shiftkit.diagnostics import plot_training_history

# Single history (backward-compatible)
plot_training_history(history_mmd)

# Multi-model comparison
fig = plot_training_history(
    histories={
        "Source Only": history_baseline,
        "MMD":         history_mmd,
        "DANN":        history_dann,
    },
    save_path="outputs/training_history.png",
    show=False,
)

Output:

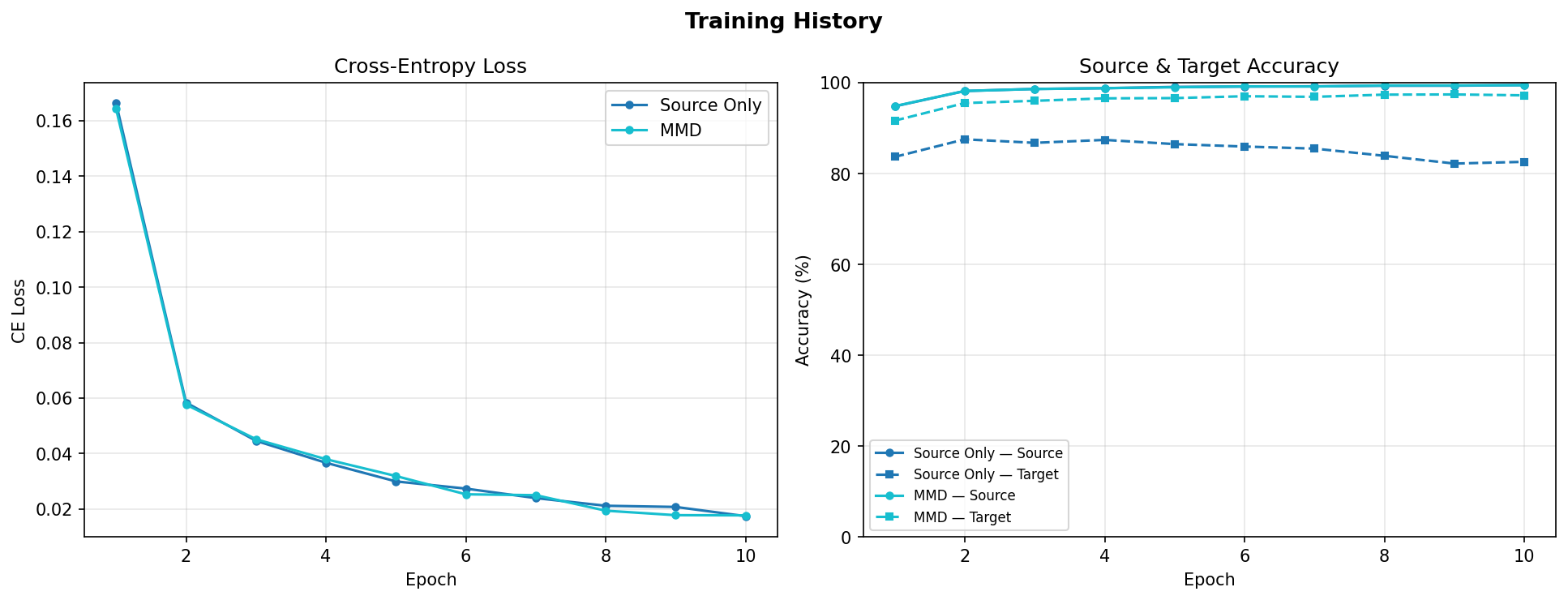

Training History Left: CE loss for both models. Right: source accuracy (solid) and target accuracy (dashed). The gap between solid and dashed lines shows the domain shift.

Parameters¶

Parameter	Type	Default	Description
`histories`	`list \\| dict[str, list]`	—	Single history list, or `{label: history}` dict for multi-model overlay
`save_path`	`str \\| None`	`None`	If set, save figure to this path
`show`	`bool`	`True`	Whether to call `plt.show()`

Returns: matplotlib.figure.Figure

History dict format¶

Each history is a list[dict] returned by trainer.fit(). Required keys:

Key	Type	Description
`epoch`	`int`	Epoch number
`ce_loss`	`float`	Cross-entropy loss
`mmd_loss`	`float`	MMD² loss (`0.0` for `SourceOnlyTrainer`)
`total_loss`	`float`	Total loss
`src_acc`	`float`	Source accuracy in `[0, 1]`
`tgt_acc`	`float`	Target accuracy in `[0, 1]`

plot_confusion_matrix¶

Compute and display a normalised confusion matrix (row = true class, column = predicted class) for one or more models on a single DataLoader. Each cell shows the proportion of true-class samples predicted as each class — perfect classification gives an identity matrix.

Accepts a single model or a {label: model} dict to compare multiple models side-by-side in one figure.

from shiftkit.diagnostics import plot_confusion_matrix

# Single model on target test set
fig = plot_confusion_matrix(
    models=model_mmd,
    loader=test_tgt,
    domain="target-test",
    save_path="outputs/confusion_matrix.png",
    show=False,
)

# Compare multiple models side-by-side
fig = plot_confusion_matrix(
    models={
        "Source Only": model_baseline,
        "MMD":         model_mmd,
        "LMMD":        model_lmmd,
    },
    loader=test_tgt,
    class_names=[str(i) for i in range(10)],
    domain="target-test",
    save_path="outputs/confusion_matrix_comparison.png",
    show=False,
)

Parameters¶

Parameter	Type	Default	Description
`models`	`nn.Module \\| dict[str, nn.Module]`	—	Single model or `{label: model}` dict
`loader`	`DataLoader`	—	Labelled DataLoader to evaluate on
`class_names`	`list[str] \\| None`	`None`	Class label strings; uses integers if `None`
`max_samples`	`int`	`5000`	Maximum number of samples to evaluate
`normalize`	`bool`	`True`	Row-normalise to proportions; if `False` show raw counts
`domain`	`str`	`"target"`	Label shown in the figure title
`save_path`	`str \\| None`	`None`	If set, save figure to this path
`show`	`bool`	`True`	Whether to call `plt.show()`

Returns: matplotlib.figure.Figure

Target domain output (Source-Only vs MMD):

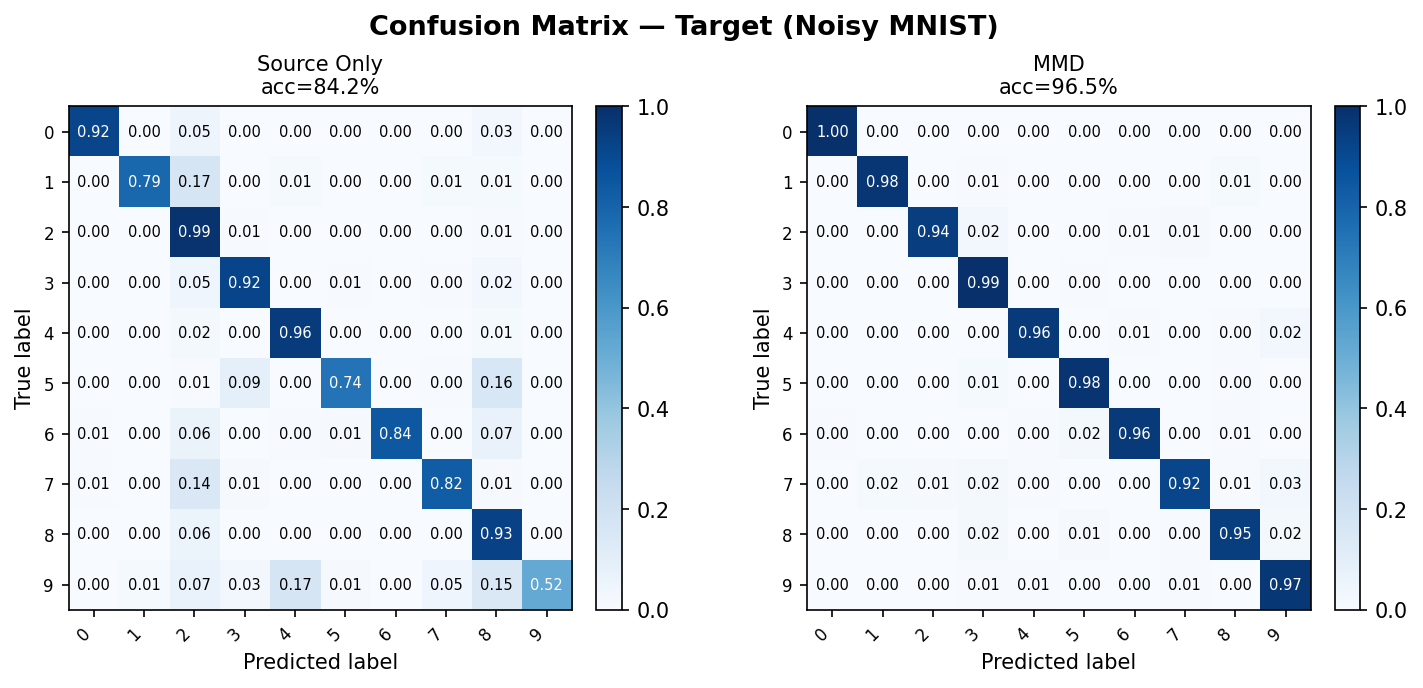

Confusion Matrix — Target Row-normalised confusion matrices on the Noisy MNIST target test set. Source-Only (left) shows visible off-diagonal errors due to domain shift; MMD (right) recovers a near-diagonal structure.

Source domain output (reference):

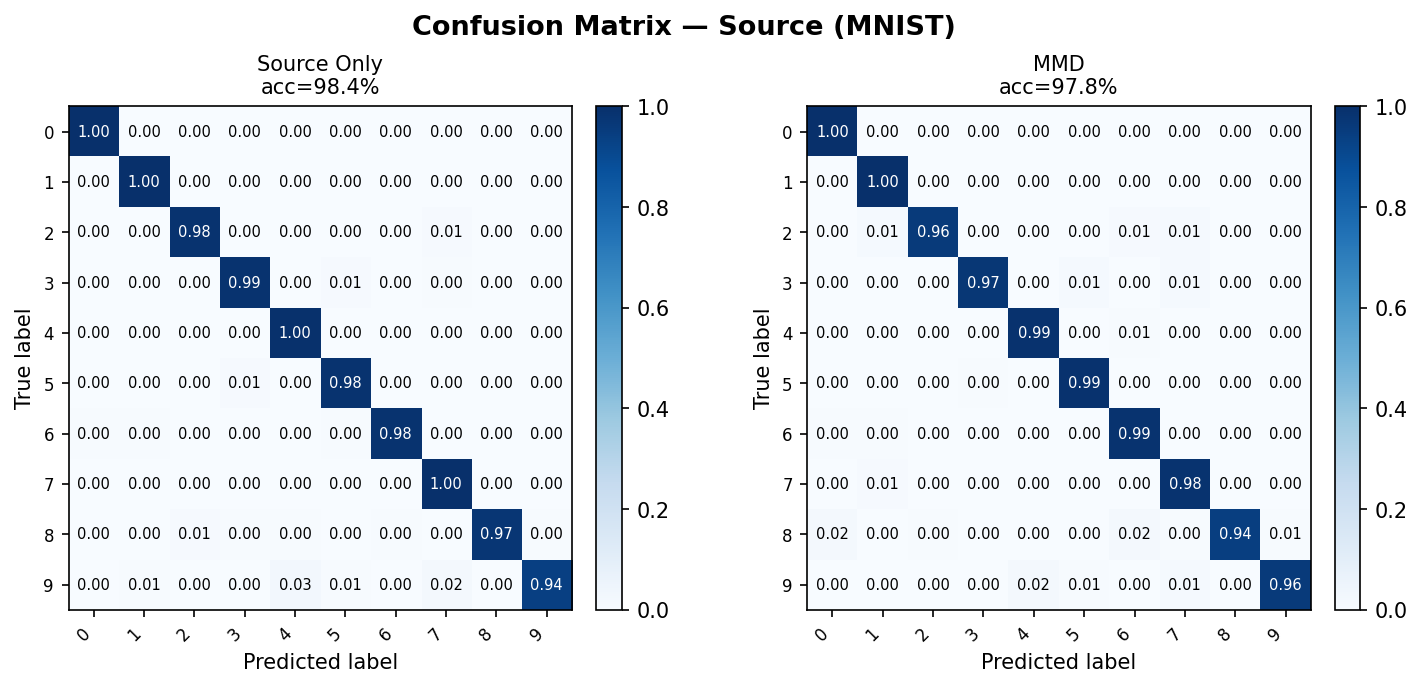

Confusion Matrix — Source Same models evaluated on the clean MNIST source test set — both models perform similarly here, confirming the performance gap is domain-induced.

Interpreting the confusion matrix

Diagonal cells (top-left to bottom-right) show correct predictions for each class.
Off-diagonal cells reveal which classes are confused with each other.
After DA, a well-adapted model should show a near-diagonal matrix on the target domain that closely matches its source-domain matrix.

plot_roc_curve¶

Plot per-class ROC curves with AUC scores using a one-vs-rest (OvR) strategy.

For binary tasks: a single ROC curve is drawn.
For multi-class tasks: one curve per class, all on the same axes per model.

Accepts a single model or a {label: model} dict to compare models side-by-side.

from shiftkit.diagnostics import plot_roc_curve

# Single model
fig = plot_roc_curve(
    models=model_mmd,
    loader=test_tgt,
    domain="target-test",
    save_path="outputs/roc_curves.png",
    show=False,
)

# Compare multiple models
fig = plot_roc_curve(
    models={
        "Source Only": model_baseline,
        "MMD":         model_mmd,
        "LMMD":        model_lmmd,
    },
    loader=test_tgt,
    class_names=[str(i) for i in range(10)],
    domain="target-test",
    save_path="outputs/roc_comparison.png",
    show=False,
)

Parameters¶

Parameter	Type	Default	Description
`models`	`nn.Module \\| dict[str, nn.Module]`	—	Single model or `{label: model}` dict
`loader`	`DataLoader`	—	Labelled DataLoader to evaluate on
`class_names`	`list[str] \\| None`	`None`	Class label strings; uses integers if `None`
`max_samples`	`int`	`5000`	Maximum number of samples to evaluate
`domain`	`str`	`"target"`	Label shown in the figure title
`save_path`	`str \\| None`	`None`	If set, save figure to this path
`show`	`bool`	`True`	Whether to call `plt.show()`

Returns: matplotlib.figure.Figure

How ROC and AUC work¶

The ROC curve plots the True Positive Rate (recall) against the False Positive Rate as the classification threshold varies. For multi-class problems each class c is treated as the positive class and all others as negative (one-vs-rest).

\[\text{TPR} = \frac{TP}{TP + FN}, \qquad \text{FPR} = \frac{FP}{FP + TN}\]

The Area Under the Curve (AUC) summarises the entire ROC curve as a single number:

AUC = 1.0 — perfect classifier
AUC = 0.5 — random chance (diagonal dashed line)
AUC < 0.5 — worse than random (predictions are systematically inverted)

Target domain output (Source-Only vs MMD):

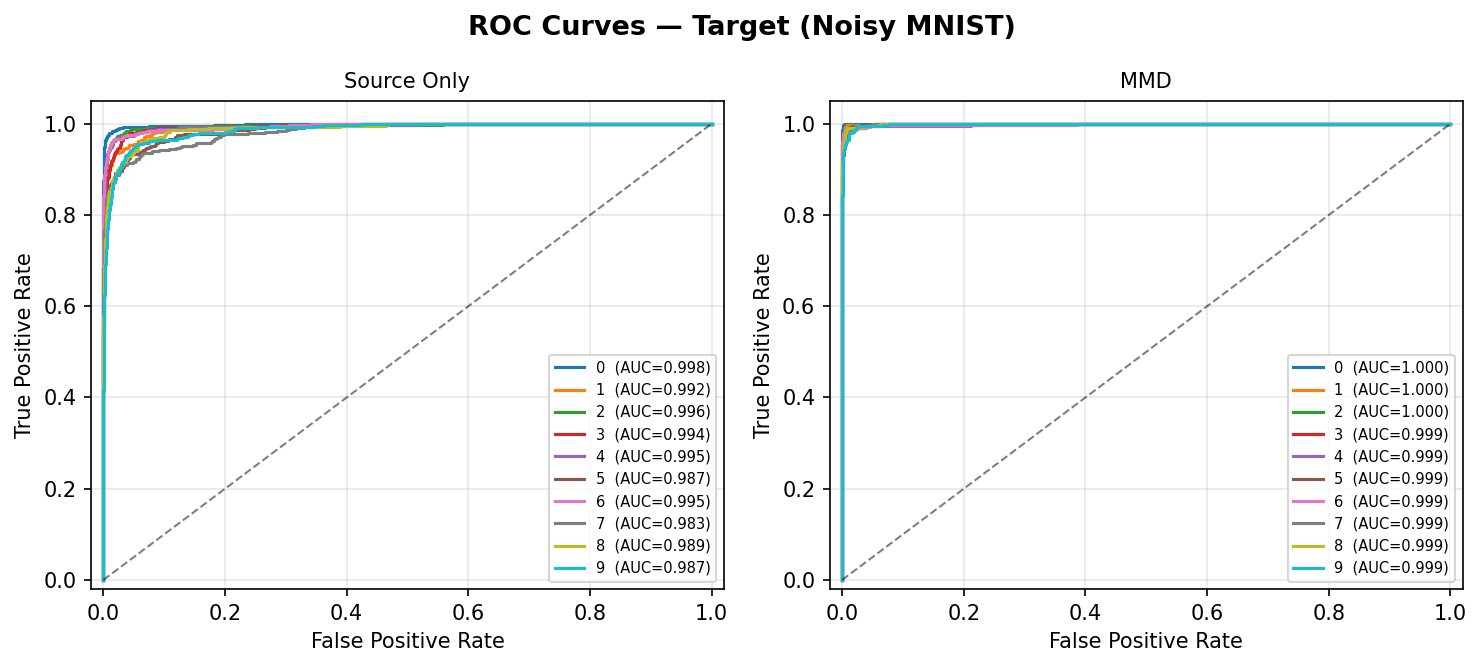

ROC Curves — Target Per-class ROC curves on the Noisy MNIST target test set. Source-Only (left) shows lower AUC for several classes due to domain shift; MMD (right) restores near-perfect AUC across all 10 digits.

Source domain output (reference):

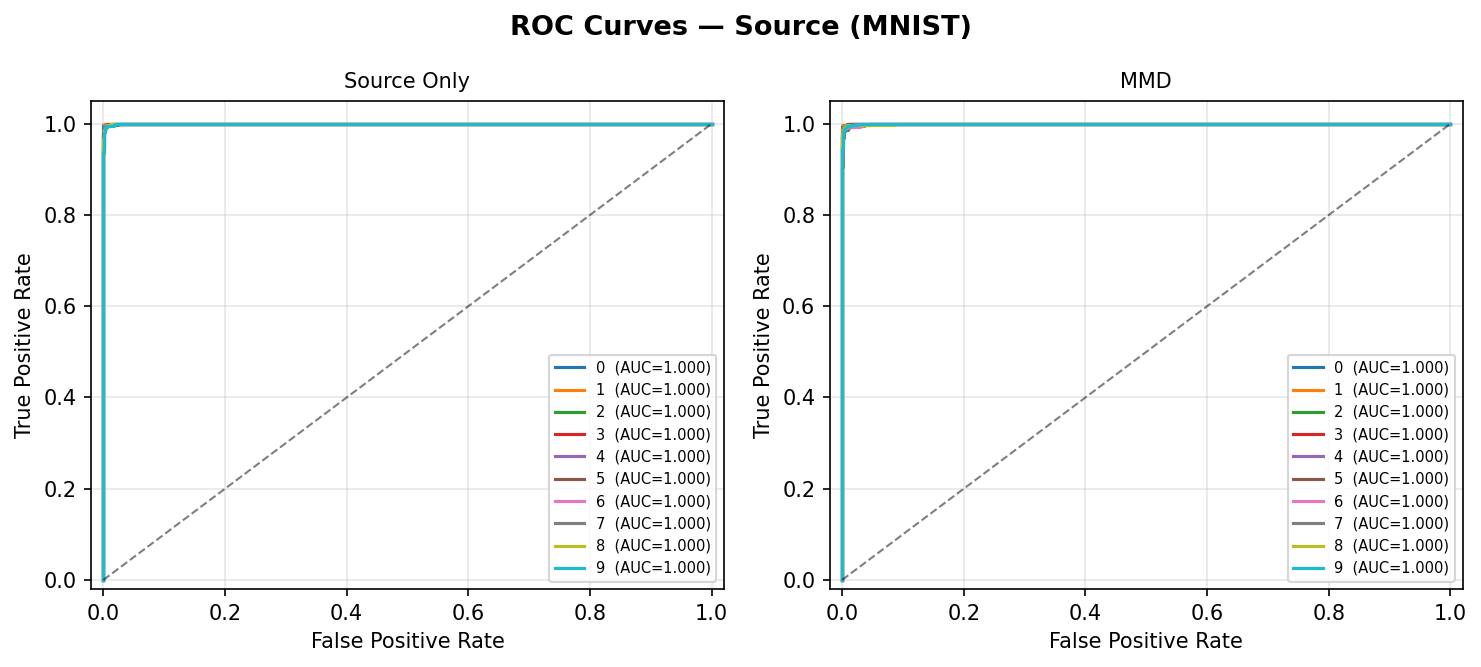

ROC Curves — Source Same models on the clean MNIST source test set — both models show high AUC on source, confirming the drop on target is domain-induced rather than a training failure.

AUC as a DA quality metric

Compare AUC on the target test set across methods. An improvement over the Source-Only baseline directly quantifies the benefit of domain adaptation for each class, independent of the classification threshold.

Comparing methods¶

Pass a {label: history} dict to overlay multiple runs on the same plot:

from shiftkit.diagnostics import plot_training_history

plot_training_history({
    "Source Only": history_baseline,
    "MMD":         history_mmd,
    "DANN":        history_dann,
    "SIDDA":       history_sidda,
})
